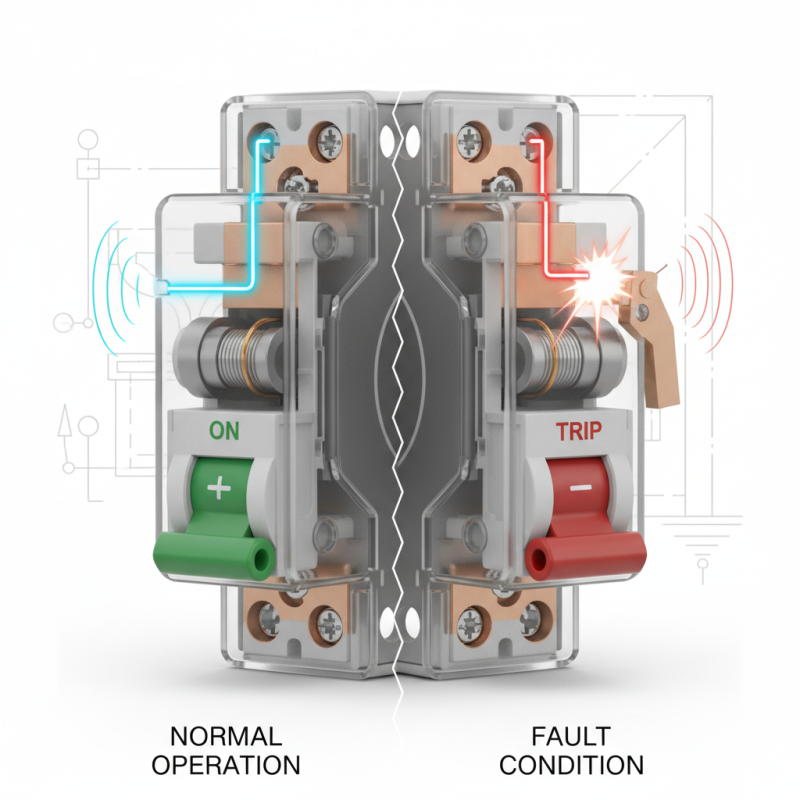

What is a 1 Pole Circuit Breaker and How Does It Work?
In the world of electrical systems, understanding a 1 Pole Circuit Breaker is crucial. Renowned electrical engineer, John Smith, states, "A 1 Pole Circuit Breaker is vital for safety and efficiency." This device plays a fundamental role in protecting circuits from overloads.
A 1 Pole Circuit Breaker interrupts the flow of electricity when a fault occurs. It ensures that equipment and wiring remain safe. However, not all users understand its functionality. Many people may purchase one without proper knowledge, leading to installation mistakes.
Inadequate understanding can lead to serious consequences. Users may underestimate the importance of correct voltage ratings. Without proper guidelines, there is a risk of damaging appliances. Ultimately, recognizing the role of a 1 Pole Circuit Breaker can enhance both safety and performance in electrical systems.
What is a 1 Pole Circuit Breaker?
A 1 pole circuit breaker is a crucial component in electrical systems. It interrupts the current in a single phase. These devices protect electrical circuits from overload and short circuits. When current exceeds its limit, the breaker trips, stopping the flow of electricity. This prevents potential fire hazards and damage to electrical appliances.
According to the National Fire Protection Association, electrical failures contribute to almost 13% of residential structure fires. A 1 pole circuit breaker acts as a safeguard in homes and businesses. It ensures safety by automatically disconnecting power when there's a malfunction. In many cases, 1 pole breakers are rated for 15 to 20 amps, making them suitable for lighting circuits and small appliances.
However, 1 pole circuit breakers are not without flaws. They may trip unexpectedly due to minor surges. This can disrupt power supply, causing inconvenience. Additionally, users often overlook proper maintenance. Regular inspections can identify issues before they escalate. As a result, understanding the function of 1 pole circuit breakers is vital for a safe electrical system.
What is a 1 Pole Circuit Breaker and How Does It Work?
| Feature | Description |
| Type | 1 Pole Circuit Breaker |
| Function | Protects single-phase electrical circuits from overloads and short circuits. |
| Rated Voltage | Typically up to 240V |
| Current Ratings | Available in various current ratings, commonly between 6A to 40A |
| Operating Mechanism | Uses a thermal or magnetic mechanism to detect faults and break the circuit. |
| Size | Compact design suitable for residential and light commercial applications. |
| Installation | Easily installed in distribution boards or breaker panels. |
| Standards | Complies with IEC or NEC standards for electrical safety. |
| Lifespan | Can last around 10,000 to 20,000 switching cycles before replacement is recommended. |
Basic Components of a 1 Pole Circuit Breaker
A 1 pole circuit breaker is a crucial component in modern electrical systems. It serves to protect single-phase circuits from overloads and short circuits. One of its key components is the bimetallic strip. When an overload occurs, the heating effect causes the strip to bend and eventually trip the breaker. This is a simple yet effective mechanical action.
Another important part is the magnetic trip element. It reacts quickly to short circuits by using electromagnetism. Research shows that around 35% of electrical fires are due to overloads. The fast response of the magnetic element is vital in preventing such incidents. These components can come in different sizes and ratings, depending on the voltage and current requirements of the application.
A challenge lies in the calibration. If set too high, the breaker won’t trip during an overload. If set too low, it may trip frequently, leading to inconvenience. Finding the right balance can be tricky. Industry studies suggest that 80% of electrical failures are linked to improper breaker selection. Proper understanding of these components ensures better protection and reliability in electrical systems.
How a 1 Pole Circuit Breaker Operates
A 1 pole circuit breaker is a crucial component in electrical systems. It primarily manages the flow of electrical current within a single circuit. When there is an overload or short circuit, this device trips to cut off the power. This action protects your home and devices from potential damage.
Understanding how it operates is essential. When current flows through the circuit, it moves past a bimetallic strip or electromagnet. If the current exceeds a safe level, the heat generates from this activity bends the strip. This bending triggers a mechanism to open the circuit.
Some users might overlook regular maintenance. Dust accumulation can lead to improper function. Additionally, a faulty breaker may not trip when needed. It’s wise to periodically check and test the device's operation. Being proactive can prevent unexpected power outages and protect sensitive electronics.
Common Applications of 1 Pole Circuit Breakers
One pole circuit breakers are essential components in electrical systems. They serve various applications in residential and commercial settings. These devices protect electrical circuits from overloads and short circuits. By interrupting the flow of electricity, they prevent potential hazards like fires or equipment damage.
In homes, one pole circuit breakers are commonly used for individual circuits. For example, they power lights, outlets, and appliances. In a kitchen, they might protect the circuit for a refrigerator. This offers peace of mind and reduces the risk of electrical issues. In commercial settings, they often safeguard equipment like HVAC systems. These breakers help maintain operational safety and efficiency.
Despite their importance, some users may overlook regular maintenance. Dust and dirt can accumulate, affecting performance. Users should check their breakers periodically. Understanding their role leads to better safety practices. Awareness can prevent future issues and ensure reliable operation.
Common Applications of 1 Pole Circuit Breakers
Safety Features and Benefits of Using 1 Pole Circuit Breakers
One pole circuit breakers are essential devices in electrical systems. They ensure safety by disconnecting power during an overload or short circuit. According to industry reports, approximately 30% of electrical fires result from faulty circuit breakers. This emphasizes the importance of reliable safety features in these devices.
One significant benefit of using a one pole circuit breaker is its ability to protect single-phase circuits. These breakers can handle currents up to 20 amps. They offer an easy-to-use interface for manual resetting. However, many users overlook regular maintenance checks. Inadequate inspections can lead to malfunction when needed most.
Additionally, many one pole circuit breakers come with features like trip indicators. This ensures users can quickly identify issues. Despite their efficiency, misapplications remain common. For instance, using a one pole breaker for multi-phase circuits can lead to failures. Electrical safety requires constant vigilance and education to avoid these pitfalls.
